Beagle is an incident response and digital forensics software which transforms safety logs and knowledge into graphs.
Beagle Supported knowledge sources embrace FireEye HX Triages, Home windows EVTX recordsdata, SysMon logs and Uncooked Home windows reminiscence photos. The ensuing Graphs will be despatched to graph databases corresponding to Neo4J or DGraph, or they are often saved domestically as Python NetworkX objects.
Beagle can be utilized straight as a python library, or by way of a offered net interface.
The library can be utilized both as a sequence of purposeful calls.
>>> from beagle.datasources import SysmonEVTX
>>> graph = SysmonEVTX(“malicious.evtx”).to_graph()
>>> graph
Or by strictly calling every intermediate step of the info supply to graph course of.
>>> from beagle.backends import NetworkX
>>> from beagle.datasources import SysmonEVTX
>>> from beagle.transformers import SysmonTransformer
>>> datasource = SysmonEVTX(“malicious.evtx”)
# Transformers take a datasource, and remodel every occasion
# right into a tuple of a number of nodes.
>>> transformer = SysmonTransformer(datasource=datasource)
>>> nodes = transformer.run()
# Transformers output an array of nodes.
[
(
(
…
]
# Backends take the nodes, and remodel them into graphs
>>> backend = NetworkX(nodes=nodes)
>>> G = backend.graph()
Graphs are centered across the exercise of particular person processes, and are meant major to assist analysts examine exercise on hosts, not between them.
Set up
Docker
Beagle is on the market as a docker file:
docker pull yampelo/beagle
mkdir -p knowledge/beagle
docker run -v “knowledge/beagle”:”/knowledge/beagle” -p 8000:8000 beagle
Python Package deal
Additionally it is obtainable as library.
Full API Documentation is on the market on https://beagle-graphs.readthedocs.io
pip set up pybeagle
Configuration
Full overview of every configuration entry
Any entry within the configuration file will be modified utilizing surroundings variables that comply with the next format; BEAGLE__{SECTION}__{KEY}.
For instance, so as to change the VirusTotal API Key used when utilizing the docker picture, you’d use -e parameter and set the BEAGLE__VIRUSTOTAL__API_KEY variable:
docker run -v “knowledge/beagle”:”/knowledge/beagle” -p :80008000 -e “BEAGLE__VIRUSTOTAL__API_KEY=$API_KEY” beagle
Setting variables and directories will be simply outlined utilizing docker compose
model: “3”
providers:
beagle:
picture: yampelo/beagle
volumes:
– /knowledge/beagle:/knowledge/beagle
ports:
– “8000:8000”
surroundings:
– BEAGLE__VIRUSTOTAL__API_KEY=$key$
Net Interface
Beagle’s docker picture comes with an online interface that wraps across the technique of each remodeling knowledge into graphs, in addition to utilizing them to research knowledge.

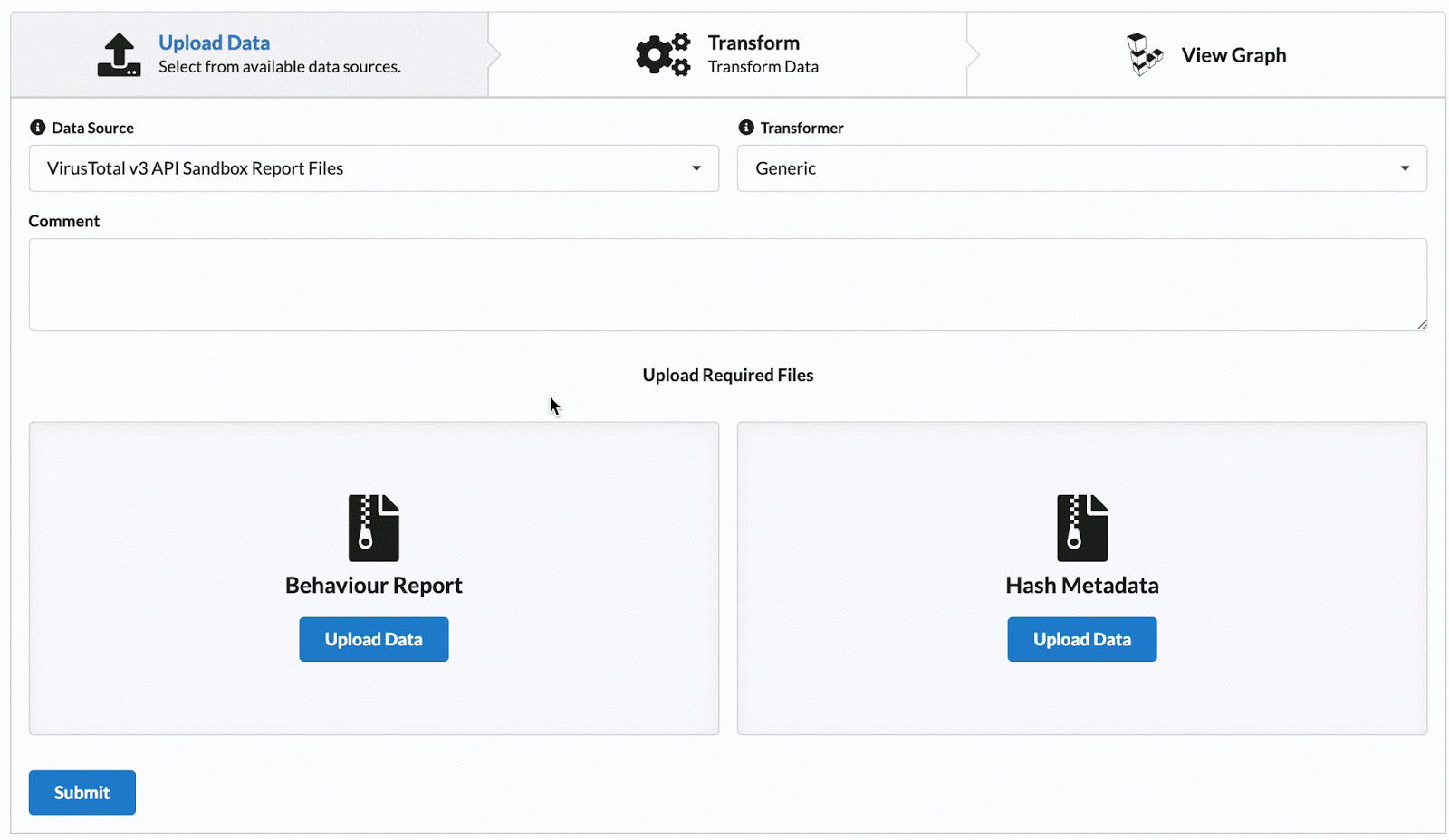

Importing Information
The add type wraps across the graph creation course of, and robotically makes use of NetworkX because the backend. Relying on the parameters required by the info supply, the shape will both immediate for a file add, or textual content enter.
For instance:
- VT API Sandbox Report asks for the hash to graph.
- FireEye HX requires the HX triage.
Any graph created is saved domestically within the folder outlined beneath the dir key from the storage part within the configuration. This may be modified by setting the BEAGLE__STORAGE__DIR surroundings variable.
Optionally, a remark will be added to any graph to higher assist describe it.
Every knowledge supply will robotically extract metadata from the offered parameter. The metadata and remark are seen in a while when viewing the present graphs of the info supply.

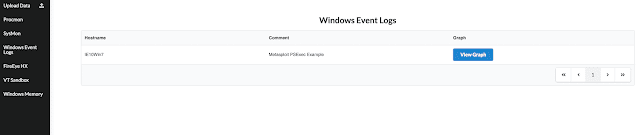

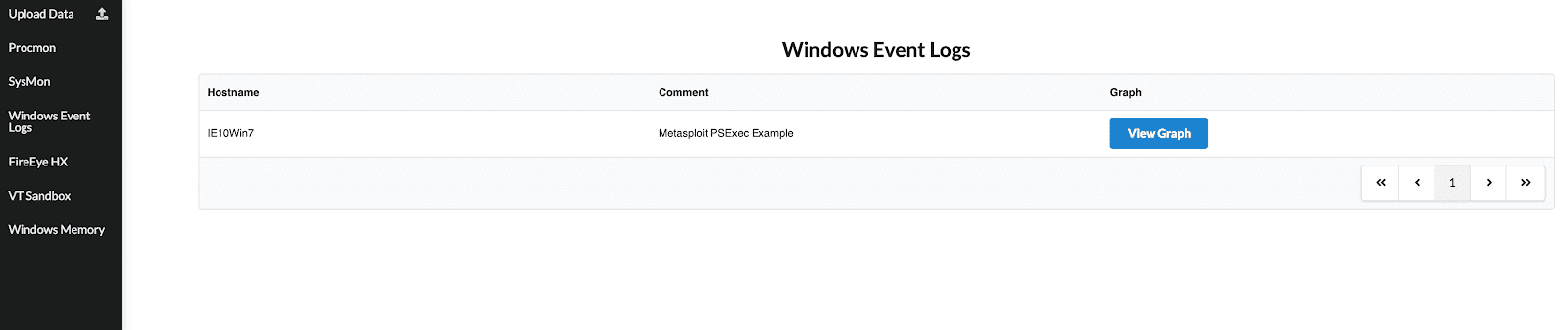

Looking Current Graphs
Clicking on an information supply on the sidebar renders a desk of all parsed graphs for that knowledge supply.
Graph Interface
Viewing a graph in Beagle offers an online interface that enables analysts to rapidly pivot round an incident.
The interface is cut up into two predominant elements, the left half which accommodates varied views of the graph (Graph, Tree, Desk, and so forth), and the precise half which lets you filter nodes and edges by kind, seek for nodes, and develop a nodes properties. It additionally permits you to undo and redo operations you carry out on the graph.

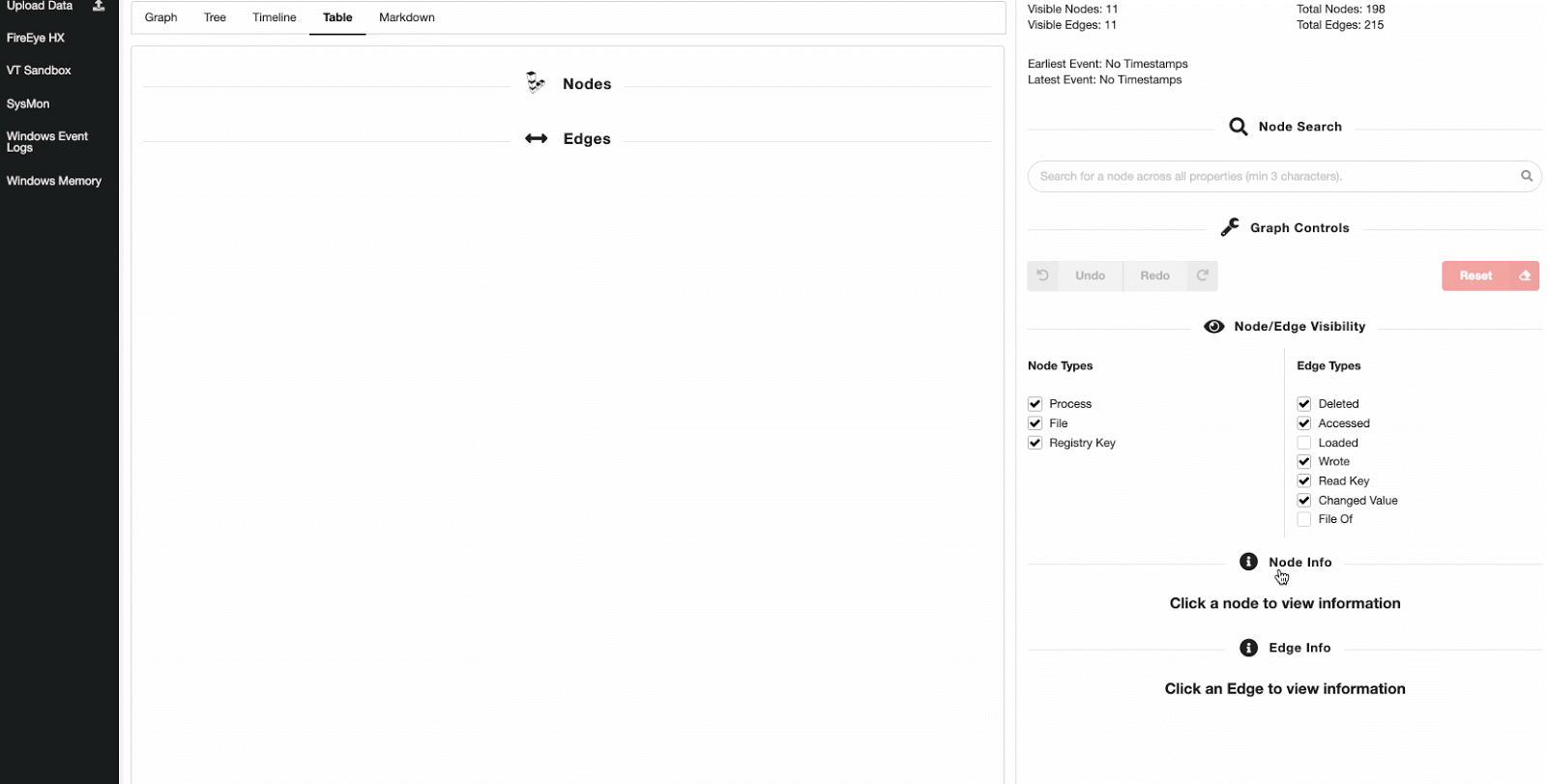

Any aspect within the graph that has a divider above it’s collapsible:
Inspecting Nodes and Edges
Nodes within the graph show the primary 15 characters of their a selected subject. For instance, for a course of node, this would be the course of identify.
Edges merely present the sting kind.

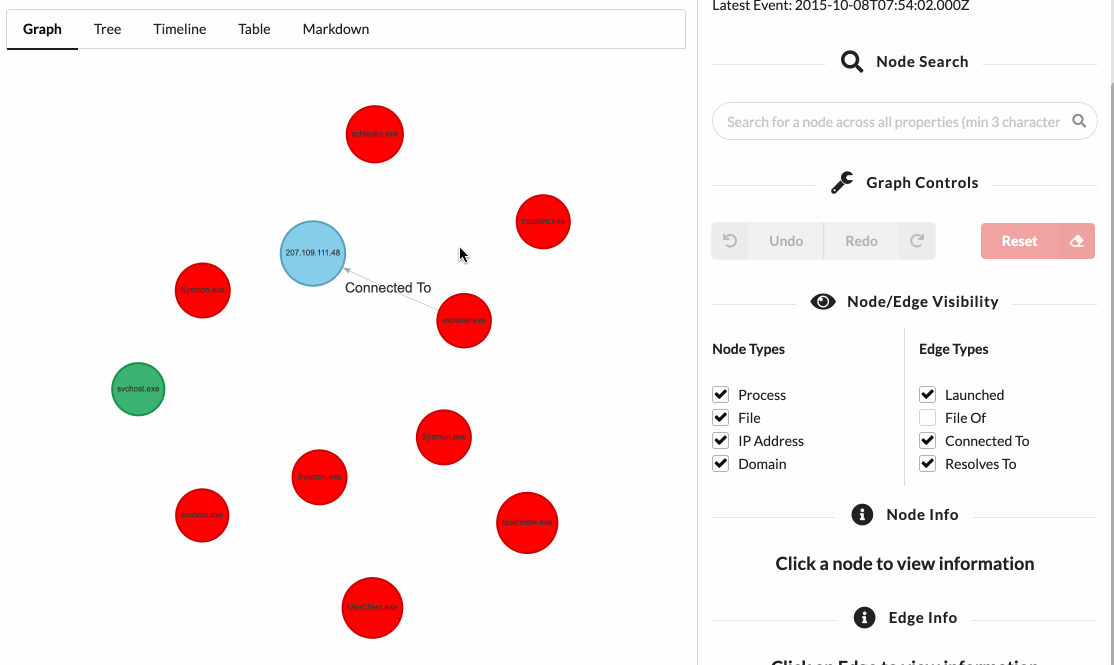

A single click on on a node or edge will focus that node and show its info within the “Node Data” panel on the precise sidebar.
Specializing in a Node

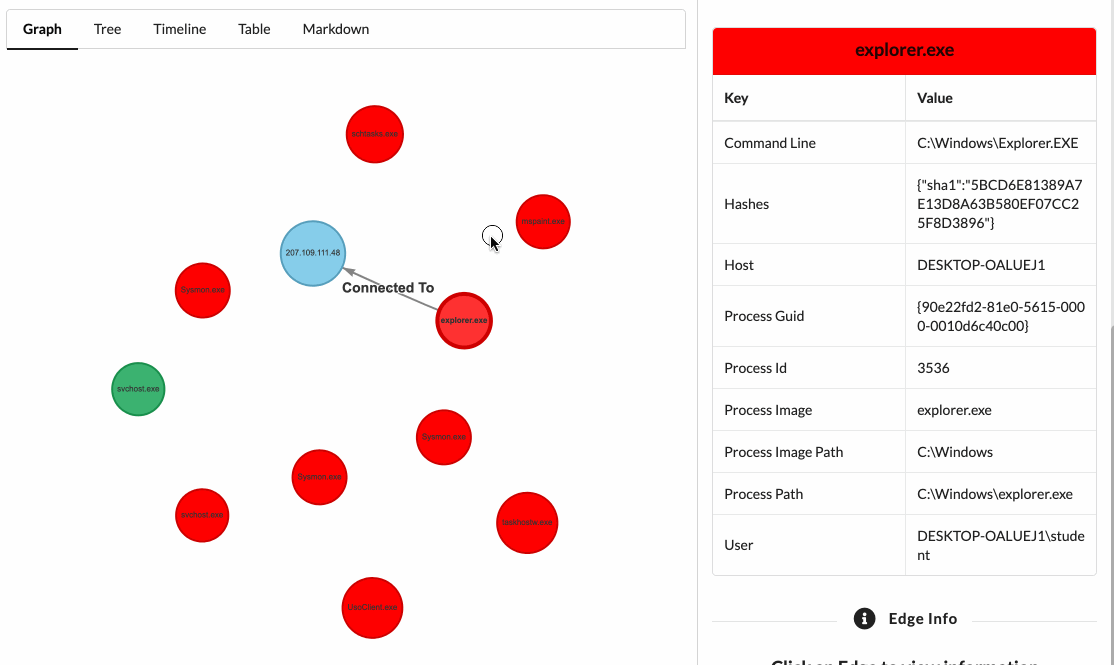

Specializing in an Edge
Increasing Neighbours
A double click on on a node will pull in any neighbouring nodes. A neighbouring node is any node linked to the clicked on node by an edge. If there aren’t any neighbors to be pulled in, no change shall be seen within the graph.
- That is no matter path. That implies that a guardian course of or a toddler course of may very well be pulled in when double clicking on a node.
- Beagle will solely pull in 25 nodes at a time.

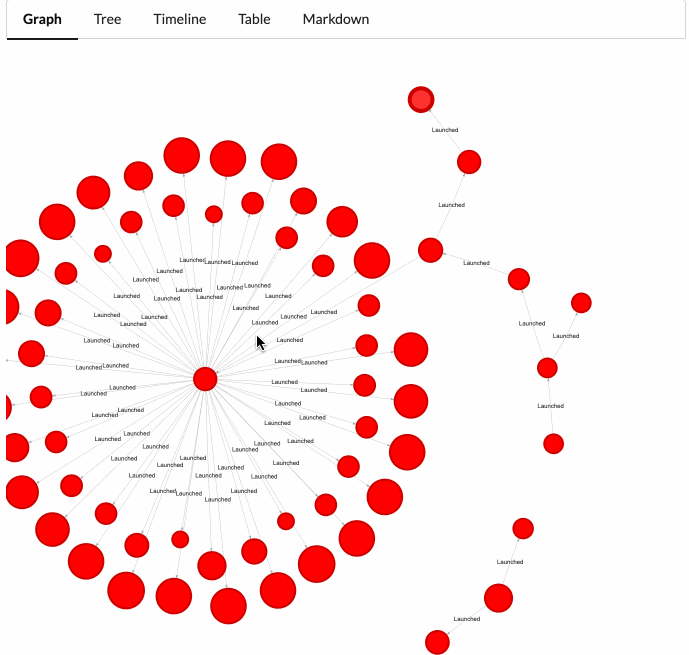

Hiding Nodes
An extended single click on on a node will cover it from the graph, in addition to any edges that depend upon it.
Operating Mutators
Proper clicking on a node exposes a context menu that permits you to run graph mutators. Mutators are capabilities which take the graph state, and return a brand new state.
Two extraordinarily helpful mutators are:
1. Backtracking a node: Discover the sequence of nodes and edges that led to the creation of this node.
- Backtracking a course of node will present its course of tree.
2. Increasing all descendants: From the present node, present each node that has this node as an ancestor.
- Increasing a course of node will present each baby course of node it spawned, any file it might have touched, and just about each exercise that occurred because of this node.

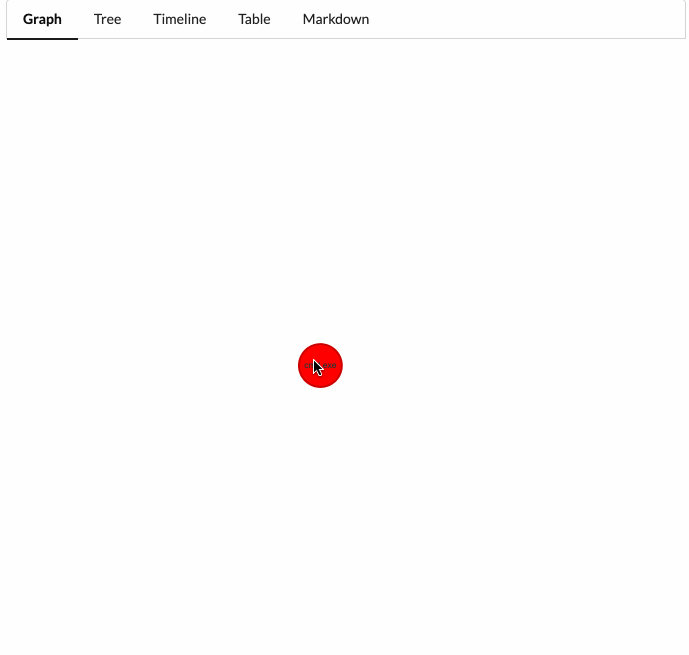

Backtracking a node
Backtracking a node is extraordinarily helpful, and is just like doing a root trigger an infection in log recordsdata.

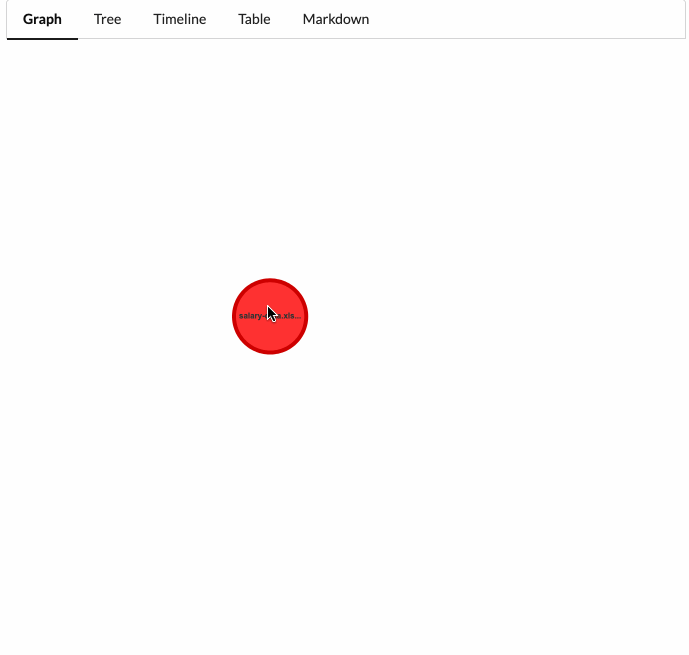

Increasing Node Descendants
Increasing a node’s descendants permits you to instantly view every part that occurred due to this node. This motion reveals the subgraph rooted on the choose node.

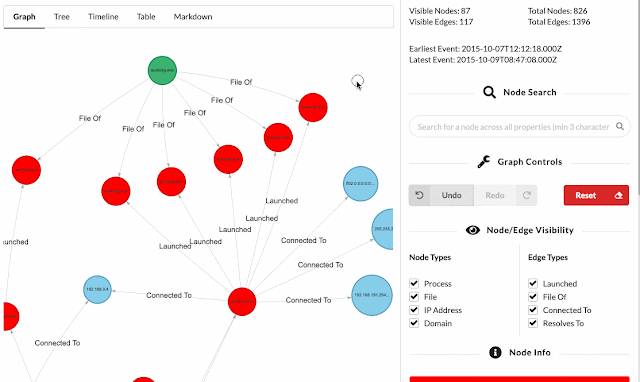

Toggling Node and Edge Sorts
Typically, a Node or Edge won’t be related to the present incident, you’ll be able to toggle edge and node varieties on and off. As quickly as the kind is toggled, the nodes or edges of that kind are faraway from the seen graph.
Toggling a node kind off prevents that node kind for use when utilizing mutators, or when pulling in neighbours.

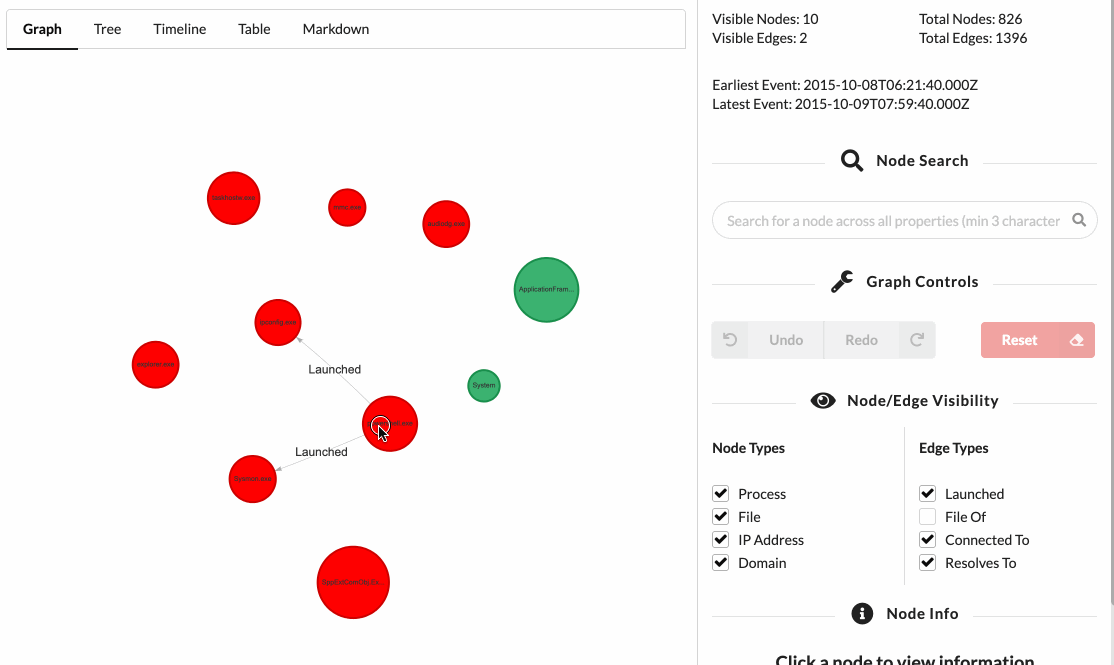

Undo/Redo Motion and Reset
Any motion within the graph is straight away reversable! Utilizing the undo/redo buttons you’ll be able to revert any motion you carry out. The reset button units the graph state to when it loaded, saving you a refresh.

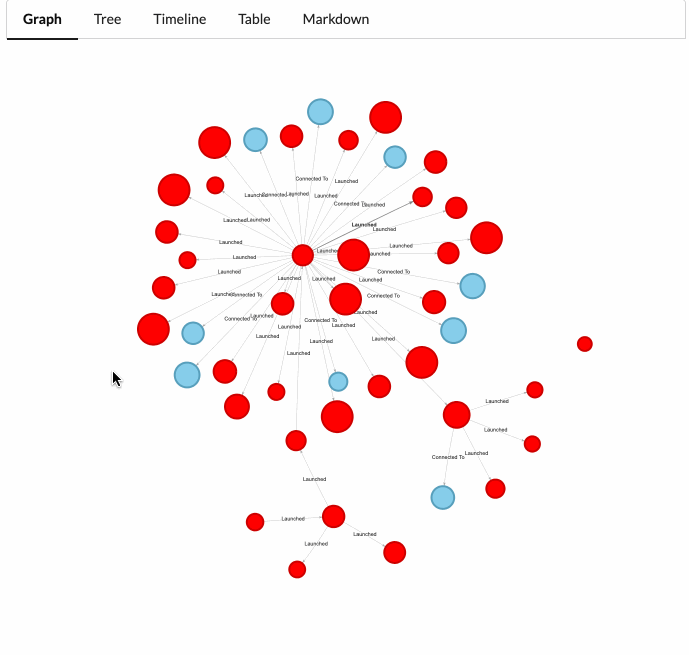

Graph Views
As you alter the graphs present state utilizing the above motion, you may also wish to view the present set of seen node and edges in a special perspective. The tabs on the prime of the graph display will let you remodel the info into a wide range of views:
Graph (Default perspective)
- Tree
- Desk
- Timeline
- Markdown
Every of the views helps specializing in nodes by clicking on them.
Python Library
The graph era course of will be carried out programatically utilizing the python library. The graph era course of is made up of three steps:
- DataSource lessons parse and yield occasions one after the other.
- Transformer lessons take these inputs, and remodel them into varied Node lessons corresponding to Course of.
- Backend lessons take the array of nodes, place them right into a graph construction, and ship them to a desired location.
The Python package deal will be put in by way of pip:
pip set up pybeagle
Making a graph requires chaining these collectively. This may be achieved for you utilizing the to_graph() operate.
from beagle.datasources import HXTriage
# By default, utilizing the to_graph() class makes use of NetworkX and the primary transformer.
G = HXTriage(‘check.mans’).to_graph()
It will also be achieved explicitly at every step. Utilizing the purposeful calls, you too can outline which Backend you want to use for instance, to ship knowledge to DGraph
from beagle.datasources import HXTriage
from beagle.backends import DGraph
from beagle.transformers import FireEyeHXTransformer
# The information shall be despatched to the DGraph occasion configured within the
# configuration file
backend = HXTriage(‘check.mans’).to_graph(backend=DGraph)
# Also can specify the transformer
backend = HXTriage(‘check.mans’).to_transformer(transformer=FireEyeHXTransformer).to_graph(backend=DGraph)
When calling the to_graph or to_transformer strategies, you’ll be able to move in any arguments to these lessons:
from beagle.datasources import HXTriage
from beagle.backends import Graphistry
# Ship the graphistry, anonymize the info first, and return the URL
graphistry_url = HXTriage(‘check.mans’).to_graph(backend=Graphistry, anonymize=True, render=False)
It’s also possible to manually invoke every step within the above course of, accessing the middleman outputs
>>> from beagle.backends import NetworkX
>>> from beagle.datasources import HXTriage
>>> from beagle.transformers import FireEyeHXTransformer
>>> datasource = HXTriage(“check.mans”)
>>> transformer = FireEyeHXTransformer(datasource=datasource)
>>> nodes = transformer.run()
>>> backend = NetworkX(nodes=nodes)
>>> G = backend.graph()
If you wish to manually name every step, you will want to make sure that the Transformer class occasion is suitable with the output of the offered DataSource class.
- All Backends are suitable with all Transformers.
Every knowledge supply defines the record of transformers it’s suitable with, and this may be accessed by way of the .transformers attribute:
>>> from beagle.datasources import HXTriage
>>> HXTriage.transformers
[beagle.transformers.fireeye_hx_transformer.FireEyeHXTransformer]
Controlling Edge Technology
By default, edges usually are not condensed, that implies that if a course of node u writes to a file node v 5000 instances, you’ll have 5000 edges between these nodes. Typically, particularly when attempting to visualise the info, this will overwhelm an analyst.
You possibly can condense all 5000 edges right into a single edge for that kind of motion (wrote on this case), by passing the backend class the consolidate_edges=True parameter,
For instance:
SysmonEVTX(“knowledge/sysmon/autoruns-sysmon.evtx”).to_graph(NetworkX, consolidate_edges=False)
# Graph accommodates 826 nodes and 2469 edges.
SysmonEVTX(“knowledge/sysmon/autoruns-sysmon.evtx”).to_graph(NetworkX, consolidate_edges=True)
# Graph accommodates 826 nodes and 1396 edges
By default, the net interface will consolidate the perimeters.
